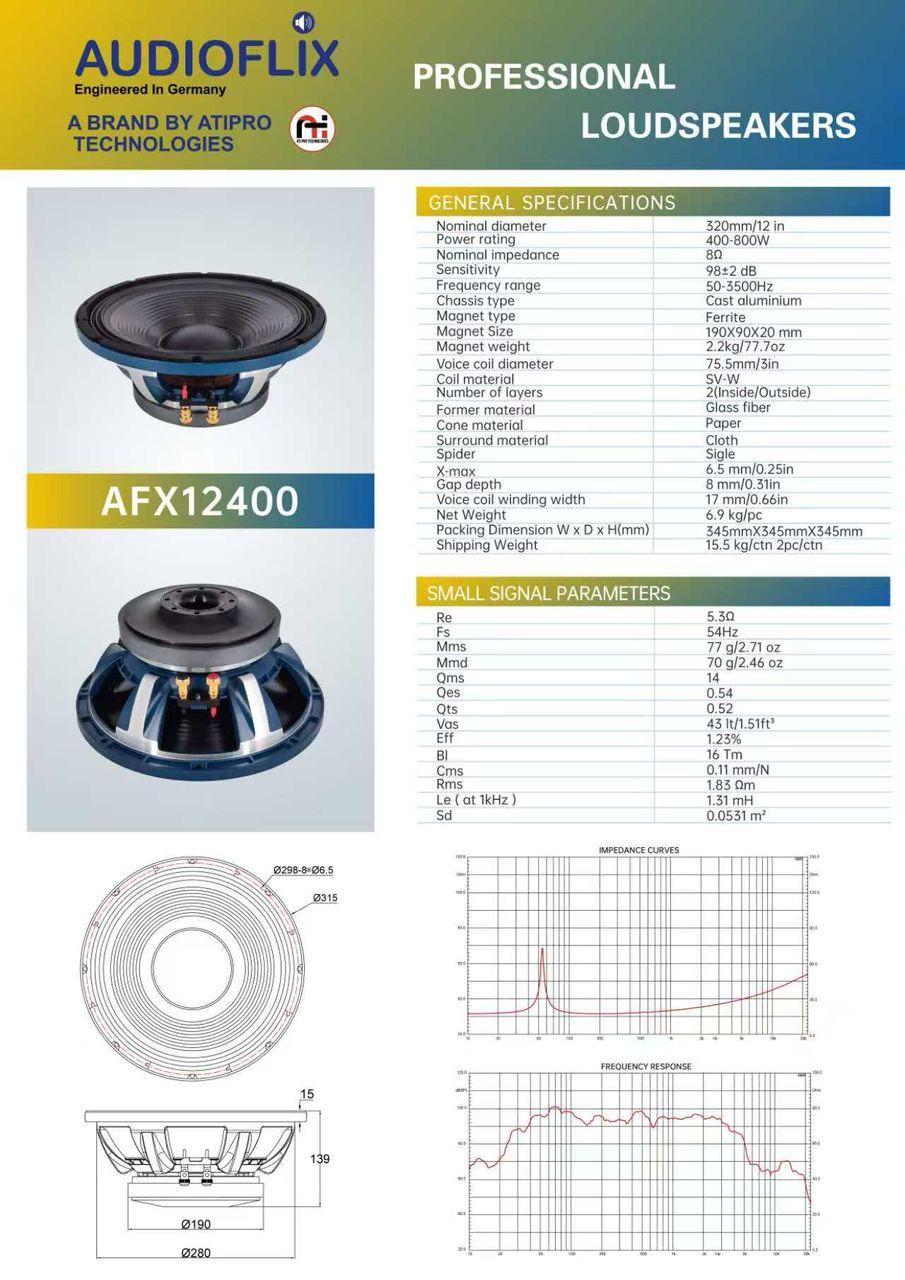

Description
Nominal diameter – 320mm/12 in
Power rating – 400-800W
Nominal impedance – 8Ω
Sensitivity – 98±2 dB
Frequency range – 50-3500Hz
Chassis type – Cast aluminum
Magnet type – Ferrite
Magnet Size – 190×90×20 mm
Magnet weight – 2.2 kg/77.7oz
Voice coil diameter – 75.5 mm/3in
Coil material – SV-W
Number of layers – 2(Inside/Outside)
Former material – Glass fiber
Cone material – Paper
Surround material – Cloth
Spider – Single
X-max – 6.5 mm/0.25in
Gap depth – 8 mm/0.31in
Voice coil winding width – 17 mm/0.66in
Net Weight – 6.9 kg/pc
Packing Dimension W x D x H(mm) – 345mmX345mmX345mm
Shipping Weight – 15.5 kg/ctn 2pc/ctn
