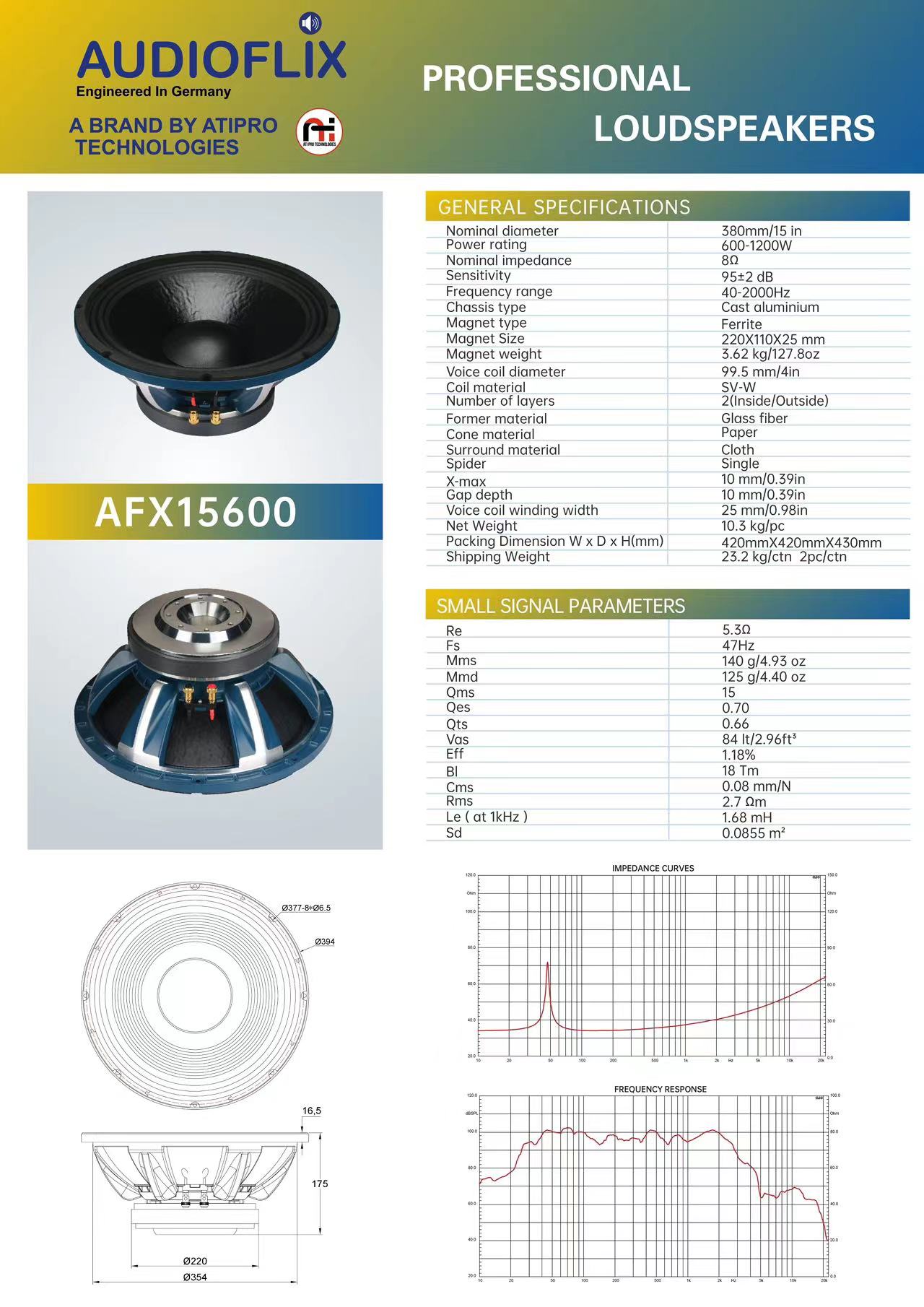

Description
Nominal diameter – 380mm/15 in
Power rating – 600-1200W
Nominal impedance – 8Ω
Sensitivity – 95±2 dB
Frequency range – 40-2000Hz
Chassis type – Cast aluminum
Magnet type – Ferrite
Magnet Size – 220×110×25 mm
Magnet weight – 3.62 kg/127.8oz
Voice coil diameter – 99.5 mm/4in
Coil material – SV-W
Number of layers – 2(Inside/Outside)
Former material – Glass fiber
Cone material – Paper
Surround material – Cloth
Spider – Single
X-max – 10 mm/0.39in
Gap depth – 10 mm/0.39in
Voice coil winding width – 25 mm/0.98in
Net Weight – 10.3 kg/pc
Packing Dimension W x D x H(mm) – 420mmX420mmX430mm
Shipping Weight – 23.2 kg/ctn 2pc/ctn
